Radiomics Feature Extraction from Ultrasound B-Mode Images and Radio-Frequency Signals of the Carotid Arterial Wall: A Feasibility Study

Artery Research volume 31, Article number: 6 (2025) Cite this article

Abstract

Background

Carotid ultrasound is largely used to assess arterial aging. Radiomics (quantitative imaging feature analysis) applied on ultrasound may allow characterizing wall ultrastructure and arterial ageing. However, to date its application to the intima–media (IM) complex is unexplored. The aim of this study is to investigate the feasibility of radiomics-based B-mode and RF feature extraction and selection process.

Methods

Radio-frequency signals from 200 individuals (age 50–75y, 40% hypertensives, 20% diabetic) were used to extract RF and B-mode features. Feature stability across three frames from the same clip and five ROI sizes for each frame were evaluated by intraclass correlation analysis (threshold > 0.50). Lasso L1 regression for chronological age prediction on ICC > 0.50 features were used to analyze reproducibility and variation across frames and ROI sizes; 80/20 train-test split was used, with performance evaluated by MSE and R2.

Results

Radiomic feature extraction was feasible in 190 among 200 individuals. 48 features showed an ICC > 0.50. Feature selection for chronological age prediction showed consistent R2 (0.09–0.14 train, 0.05–0.13 test) and MSE (32.3–34.3 train, 30.7–42.3 test) across frames. Fixed ROI sizes of 1.0mm and 1.2mm had comparable performance to an ROI size manually tailored to wall thickness: R2 (0.07–0.15 train, 0.07–0.17 test) and MSE (33.15–36.22 train, 33.07–34.83 test), consistently selecting substantially similar three to six features.

Conclusion

While feature extraction and selection process are largely reproducible across frames, ROI size proved critical and thus must be carefully chosen. Further studies are required to demonstrate the validity of this approach for carotid wall characterization.

1 Introduction

Vascular ageing is marked by progressive structural and functional deterioration of blood vessels that occurs with ageing. These changes over time increase the risk of developing cardiovascular disease [1, 2]. Vascular ageing is an inevitable physiological process; however, the rate and extent of this vascular deterioration can vary considerably among certain individuals. Early vascular ageing (EVA) exhibits structural and functional arterial changes typically associated with older age, despite being chronologically younger [3, 4]. Conversely, in supernormal vascular ageing (SUPERNOVA), individuals demonstrate remarkable preservation of vascular health and function, with their arteries appearing physiologically younger than their chronological age. In recent years, there has been an increased evidence on the role of vascular ageing biomarkers in predicting cardiovascular events [5, 6].

The current assessment of vascular ageing may involve utilizing biomarkers for atherosclerosis, such as the calcium score (CAC) or plaque analysis, as well as biomarkers for arteriosclerosis, including pulse wave velocity (PWV) and carotid distensibility [7]. These image-based assessments are typically performed using various imaging techniques, including magnetic resonance imaging (MRI), computed tomography (CT), and ultrasound (US). Thorough evaluations of both structural and functional vascular alterations are essential for assessing the cardiovascular risk associated with vascular ageing [8]. Advanced imaging modalities such as MRI and CT, while effective, are expensive, complex and have low availability, thus not perfectly suitable for routine preventive risk assessments. In contrast, carotid US assessment is relatively low cost, safe, widely available and able to capture both atherosclerotic and arteriosclerotic biomarkers. This makes it an optimal choice for routine preventive risk assessment. Among carotid ultrasound biomarkers, carotid plaque [9, 10] and carotid stiffness [11] demonstrated predictive value for cardiovascular events, mostly stroke, on top of cardiovascular risk factors [12]. Conversely Intima–media thickness (IMT) additive predictive value is debated: while IMT is associated with cardiovascular risk factors and is useful for understanding response to treatment [13], its ability to enhance risk prediction beyond existing methods is limited [14]. For this reason, there is a need for continuous improvement of methods and techniques aimed at developing new descriptors, to better capture the subtle structural variations in the carotid arteries [8, 15]. It is now well documented that radiomics, which involves extracting numerical data from images, can provide more detailed information than simple images and in some settings can be comparable to diagnostic assessment by radiologists [16, 17]. Multiple studies have validated the predictive power of radiomic features (quantitative information mostly from CT or MRI images) and correlating these with clinical outcomes [16]. Especially, radiomics has proven impactful in oncology, in survival prediction for oesophageal cancer patients [18], in predicting breast cancer heterogenicity [19] and in assessing both tumour recurrence [20] and disease-free survival in advanced rectal cancer [21]. Cardiovascular applications of radiomics have also shown promise, mostly applied on coronary CT scans [22, 23], but also on carotid plaque US [24]. For example, Huang et al. explored the relationship between radiomic plaque features and clinical symptoms [25], while Le et al. assessed CT angiography radiomics for stroke prediction [26]. Liu et al. developed a radiomics nomogram for stroke risk in diabetes [27], and Van Engelen et al. demonstrated that plaque texture radiomics could predict vascular events [28]. To date, the carotid IM complex has never been investigated by radiomics, because of small tissue region size, rendering difficult feature extraction from standard B-mode images [29]. However, a more comprehensive analysis of IMT ultrastructure may provide additional information on atherosclerosis development at an earlier stage of disease, before plaque development. Indeed, lower ultrasound resolution makes it difficult to capture histological details such as cells [30, 31]. However, the integration of B-mode imaging with radio-frequency phase-derived information, alongside advanced texture analysis techniques (on both RF-B-mode), offers a promising solution to extract and quantify information about structural disarray as a consequence of cell and extracellular matrix changes [32]. We hypothesized that combining B-mode with radio-frequency (RF) signal radiomic analysis would provide complementary information for comprehensive characterization of the intima–media complex. B-mode imaging offers greyscale representation of tissue acoustic properties, morphological information and interface detection, while RF signals provide raw acoustic data with preserved phase information, higher axial sensitivity and greater spatial resolution [33]. In this study, we aimed to evaluate the feasibility of radiomics-based B-mode and RF feature extraction from the IM complex. A key focus was to assess the impact of the selected region-of-interest (ROI) size and the frame used on the extracted radiomic features.

2 Materials and Methods

2.1 Study Population

A feasibility study on a subset of 200 individuals selected from the Paris Prospective Study III (PPS3) cohort was conducted. A targeted sampling approach was implemented, oversampling individuals with type 2 diabetes (T2D) by up to 20% to capture more extreme phenotypes associated with the condition. Additionally, the presence of carotid plaques in approximately 20% of the sample was enforced, ensuring representation of vascular complications relevant to T2D. To ensure a comprehensive range of blood pressure values, the population was divided into thirds: one-third within the 25th–75th percentile range (120–141 mmHg), one-third below the 25th percentile (< 120 mmHg), and one-third above the 75th percentile (≥ 141 mmHg). Furthermore, individuals aged between 50 and 75 years were uniformly included, ensuring a consistent distribution across the age range.

PPS3 is an ongoing community-based prospective observational study conducted in Paris, France [34]. The study protocol was approved by the Ethics Committee of Cochin Hospital (Paris, France) and was registered on the World Health Organization International Clinical Trials Registry platform (NCT00741728) on 08/25/2008. A total of 10,157 men and women aged 50–75 years were enrolled, who underwent a comprehensive preventive medical checkup, after signing an informed consent form.

2.2 Ultrasound Acquisition

The vascular US was performed using Esaote PICUS Machine, Genova, Italy (128 RF linear array transducer with 7.5MHz, B-mode pixels 758 × 508 and RF-matrix 1516 × 127). The raw radio-frequency data were preserved to facilitate in-depth analysis. The inclusion criteria required the visibility of the intima–blood interface in at least some part of the far wall of the right common carotid artery, in a clear reconstructed B-mode image. Further details are available in the publication by PPS3 study group et al. [34].

2.3 Ultrasound Data Processing

First, we developed a graphical user interface (GUI) using MATLAB software (MathWorks, Inc., Massachusetts, USA, version 2022b) to process raw radio-frequency signals and to reconstruct and process B-mode images. Additionally, we identified 178 radiomics features (see description below) to be calculated from the selected region of interest (ROI). Building on previous work [35], RF signals were transformed into B-mode ultrasound images using standard techniques.

2.4 Radiomic Features

A total of 74 radiomic B-mode features and 104 radiomic radio-frequency (RF) features were evaluated with the GUI. The B-mode features encompassed the following: (1) first-order statistics [36], (2) higher-order textural features [37,38,39] (3), transform-based wavelet features [40] and (4) fractal analysis features [41, 42]. Similarly, the RF features comprised the following [43]: (1) time series features computed individually for each RF time series within the region of interest (ROI), with the mean value computed on 30 frames to derive the time domain characteristics [44]; (2) frequency domain features involving Fourier transform to acquire the frequency spectrum, followed by straight-line fitting on the normalized spectrum [45, 46]; furthermore, (3) the M parameter extracted from the Nakagami distribution mean diagram (NDM) parametric map [45, 47] utilizing Nakagami distribution; (4) spectral features [46]; (5) the calculated feature maps such as direct energy attenuation diagram (DEA) and RF signal skewness intensity diagram (RF-I), and the first-order statistics and higher-order textural features extracted from each map by applying the texture analysis [45, 48] (Table 1).

Table 1 Summary of Extracted Radiomic Features and their Classes
Full size table

2.5 Data Extraction Settings

180 B-mode images (frames) were obtained from every original 6-s acquisition (a 128 radio-frequency line multiarray with a depth of 4 cm captured at 30 frames per second). The region of interest was manually selected from the B-mode image capturing the intima–media complex on the far wall of the right carotid artery using a rectangular bounding box. Three end-diastolic frames from each patient were selected. For each frame, four ROI sizes (1 mm, 1.2 mm, 1.4 mm, and 1.6 mm) were extracted from the same location, with the bounding box centred on the smoothest section of the far wall to ensure optimal visualization of the Intima–blood interface (as depicted in Fig. 1). The bounding box encompassed the blood intima interface with minimal blood lumen on one side and the adventitia on the other. Initially, the bounding box was set at 1mm, gradually expanding by 0.2 mm towards the adventitia side while maintaining its position, to obtain the four different ROI sizes. Additionally, a fifth ROI size, termed the variable ROI, was introduced, which is the most suitable size among the four, precisely covering the intima–media (IM) complex (visually selected). Once extracted with the GUI, the features were normalized before performing feature selection.

Fig. 1
figure 1

Graphical User Interface for ultrasound image visualization, ROI selection and feature extraction

Full size image

2.6 Statistical Analysis and Feature Engineering

Descriptive statistics for population variables are presented as mean ± standard deviation (SD) or as counts (n) and percentages (%). First, we evaluated the feature stability across the three frames of the same clip and five ROI sizes of each frame by applying intraclass correlation (ICC) analysis with threshold of ICC > 0.50. We applied a two-way mixed effects model to calculate absolute agreement, treating ROI sizes as fixed effects and individuals as random effects [44]. Second, we investigated the impact of frame variability on the subset of extracted features with ICC > 0.50 using the feature selection technique. We applied least absolute shrinkage and selection operator (Lasso—L1 regularization) with chronological age as outcome [49]. The following metrics were compared: number, type of selected features, mean square error (MSE) and R2. These metrics were calculated from four datasets: the three containing the features extracted by three selected frames and one containing their median values, using the variable ROI size. Internal validation was tested by 80/20 split sample technique.

Thirdly, the impact of variation in ROI size on the subset of extracted features with ICC > 0.50 was also investigated by Lasso L1 regression. The following metrics were compared: number, type of selected features, MSE and R2. These metrics were calculated from the five datasets containing the median value of each feature for the three frames for five ROI sizes (1.0 mm, 1.2 mm, 1.4 mm, 1.6 mm and Var ROI). The internal validation was tested by the 80/20 split sample technique. Additionally, we performed sensitivity analyses by applying minimum redundancy maximum relevance (MRMR) and stepwise feature selection methods instead of Lasso L1, to validate the stability and reproducibility of the results with other feature selection techniques (see workflow diagram Fig. 2). The analyses were carried out using RStudio version 2023.9.0.463 (Boston, MA), utilizing glmnet, mlr, caret, dplyr, mRMRe, e1071 and tidyverse packages.

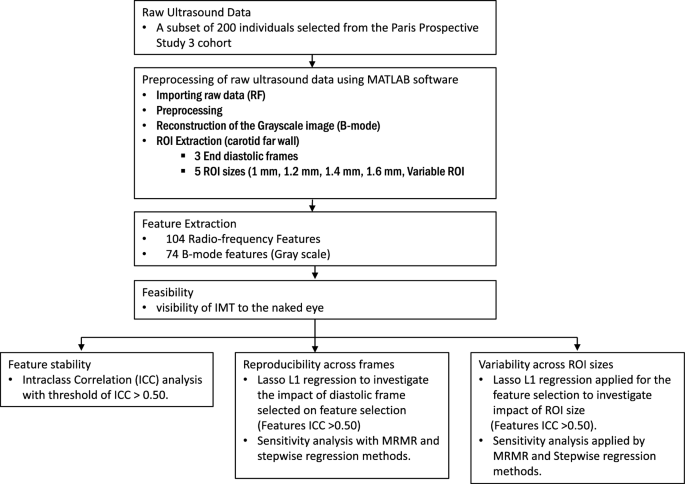

Fig. 2
figure 2

Comprehensive workflow for radiomics-based analysis of vascular ageing using b-mode and radiofrequency ultrasound imaging of the right common carotid artery

Full size image

3 Results

3.1 Characteristics of the Study Population

Out of the initial cohort of 200 individuals, 10 were excluded because the reconstructed images did not display clearly the IMT complex in any frame, and thus the analysis was run in 190 individuals. There were 48.42% (92) women, 40% (77) hypertensives, 15.78% (30) with the presence of carotid plaques and 20% (37) diabetic individuals, with a mean IMT of 631 μm ± 108 standard deviation (std) and mean age of 59.47 years (Max 74.07–Min 50.01). The baseline characteristics of the study population are mentioned in Table 2 and the carotid geometric and mechanical properties are mentioned in Table 3.

Table 2 Summary of baseline characteristics of the population
Full size table
Table 3 Summary of carotid geometric and mechanical characteristics
Full size table

3.2 Feature Stability Across the Frames

Features showing ICC > 0.50 were 73 when ROI size was 1 mm, 72 when ROI size was 1.2 mm, 65 when ROI size was 1.4 mm, 60 when ROI size was 1.6 mm and the variable ROI (which was used as a reference) yielded 48 features. Notably, all 48 features with ICC > 0.50 when ROI size was variable were also part of the sets identified by the fixed ROI sizes (See Table S1 in the Supplementary file). These features included 40 B-mode features (5 first-order, 21 higher-order, 9 wavelet transform features) and 8 RF features (5 first-order and 3 time series features).

3.3 Reproducibility of Features Across Frames

Selected features varied in number from two to ten, but feature type and class were similar across frames. Selected features included B-mode first-order and higher-order features, as well as RF first-order features (Table 4). L1 regularization demonstrated consistent R2 (0.09–0.14 in the train set, 0.05–0.13 in the test set) and mean square error values (32.3–34.3 in the train set, 30.7–42.3 in the test set) across the four datasets. Similar and consistent model performance was observed with different feature selection models (MRMR and stepwise regression, in Table S2 of Supplementary file).

Table 4 Results of reproducibility of features across frames
Full size table

3.4 Variability Between ROI Sizes

The feature selection model performance varied considerably across different ROI sizes. The best performance was obtained by the Var ROI size, as expected; the model failed to select any feature in the 1.6 ROI size dataset. Overall MSE values ranged from 33.15–36.22 in the train to 33.07–34.83 in the test set and R2 values ranged from 0.07–0.15 in the train set to 0.07–0.17 in the test dataset. Interestingly, model performance and feature selected in ROI size 1.0 and 1.2 datasets were similar to variable ROI size (Table 5). Furthermore, features selected in in ROI size 1.0 and 1.2 datasets were more numerous than those in Var ROI size, but the type and class were similar. Consistent and similar results were obtained with different feature selection models (MRMR and stepwise regression, in Table S2 of Supplementary file).

Table 5 Results of variability between ROI sizes
Full size table

4 Discussion

This study established that feature extraction from the IM complex was feasible in 95% of cases for both RF and B-mode files. Approximately, 28% of the features were found to be stable across the three end-diastolic frames for all five ROI sizes. We further investigated the impact of frame and ROI size variability on extracted features using the feature selection technique. We found no impact on number, type and value of selected features due to frame variability. However, the ROI size did have an effect on the feature extraction, suggesting that the ROI size should be carefully chosen.

Radiomic analysis is increasingly utilized in carotid US, primarily for plaque analysis with findings typically derived from B-mode imaging [24]. This study is likely the first to apply radiomics in two novel ways: first, by focusing on the intima–media complex to characterize wall ultrastructure rather than solely on plaque; and second, by utilizing both B-mode images and raw radio-frequency signals, which contain richer spatial information than B-mode alone [26]. While the combined use of RF and B-mode US radiomic features has been applied in oncology, its application in cardiovascular radiomics remains unexplored. Incorporating RF-based radiomic features has improved accuracy in cancer detection and characterization compared to B-mode alone in breast cancer [50, 51].

The main objective of our study was to assess the feasibility and reproducibility of extracting radiomic features from the IM complex using both RF and B-mode US data. In terms of feasibility, RF and B-mode feature extraction was successfully performed on 190 out of 200 clips. The only clips where feature extraction was not feasible were those in which the IMT was not visible at all.

Once feasibility was established, we investigated issues related to ROI delineation, which is crucial for feature extraction integrity. Indeed, inaccurate ROI delineation could lead to incomplete or inaccurate representation of the target anatomical structure (IM complex). In particular, we investigated the impact of the cardiac cycle frame (temporal aspect) and of the size of the region of interest (spatial aspect) on the radiomic features.

First, our analysis of frame variability sought to recognize stable and reproducible features across 3 end-diastolic frames. By intraclass correlation coefficient, we identified a robust set of features consistently present irrespective of the frame and ROI size (from B-mode first-order, higher-order, wavelet, RF first-order, and time series classes).

We further investigated the impact of frame variability on feature selection using chronological age as an outcome. The consistent selection of the same feature types across all frames (type of features) indicated that the choice of frame does not significantly impact the analysis, allowing for flexibility in frame selection without compromising the integrity of the results. The selected features from B-mode first-order features describe intensity and contrast, reflecting IM complex density. Higher-order features reveal texture and heterogeneity, indicating tissue structure. Wavelet features capture multi-scale structural changes, detecting alterations in the IM complex [52]. RF features provide insights into acoustic properties, revealing tissue mechanical characteristics [33, 53, 54].

Second, we evaluated whether a fixed, automatically chosen, ROI size could provide results similar compared to a tailored ROI size manually drawn by an operator. Our results show that fixed ROI sizes of 1.0 or 1.2 mm, but not 1.4 and 1.6 mm, provide similar results in terms of feature reproducibility and selection compared to the variable ROI. This suggests that the choice of ROI size is critical in optimizing the extraction of relevant features, highlighting the importance of selecting an appropriate size tailored to the anatomical characteristics of the IM complex. Inclusion of portions of the adventitia in the ROI significantly alter the radiomic feature profile.

Utilizing this methodological pipeline for predictive modelling may offer the potential to capture both atherosclerotic and arteriosclerotic features (biomarkers) using a single, non-invasive CCA ultrasound. As vascular ageing involves both atherosclerotic and arteriosclerotic processes, radiomic analysis may aid in the early detection of vascular ageing, contribute to improved risk stratification for vascular diseases, and provide additional insights into carotid wall ultrastructure, potentially supporting timely interventions to reduce adverse outcomes.

We acknowledge some limitations in this study. First, since this is a pilot investigation, it was conducted in a small highly selected population sample. We plan to validate our findings in an external dataset that includes a broader age range and diverse ethnicities. Second, feature extraction has been performed only in end-diastolic frames: exploring the potential impact of different cardiac cycle phases on feature extraction could provide additional insights. Third, the current study is not powered for predictive modelling, but only to investigate the robustness of the approach. Further validation and refinement, particularly with a larger dataset, are needed before making definitive conclusions about its effectiveness. Fourth, clinical relevance of the extracted features as well as potential confounding factors such as comorbidities, lifestyle factors and environmental exposures is beyond the scope of this article, but needs to be investigated in future studies.

5 Conclusions

Our study demonstrates the feasibility of radiomic US feature extraction from the IM complex using both RF and B-mode US data, showing minimal sensitivity to variations in frame selection. However, ROI size significantly affects feature extraction, highlighting the importance of precise ROI delineation in radiomics research. Building on these methodological improvements, we aim to expand radiomics applications in vascular health as novel biomarkers of vascular ageing.

Availability of Data and Materials

The data used in the current study are not publicly available due privacy issues but it will be made available on reasonable request. All data analyzed in this study are presented within the paper and supplementary material.
